Export Scan Data

There are two ways to export scan data out of Cintoo Cloud:

1. From the Data tab
2. From the Crop List (Learn more about the Crop Tool here)


Cintoo Connect must be installed on your local drive in order to export scan data.
(See instructions here)

1. Export scan data from the Data tab

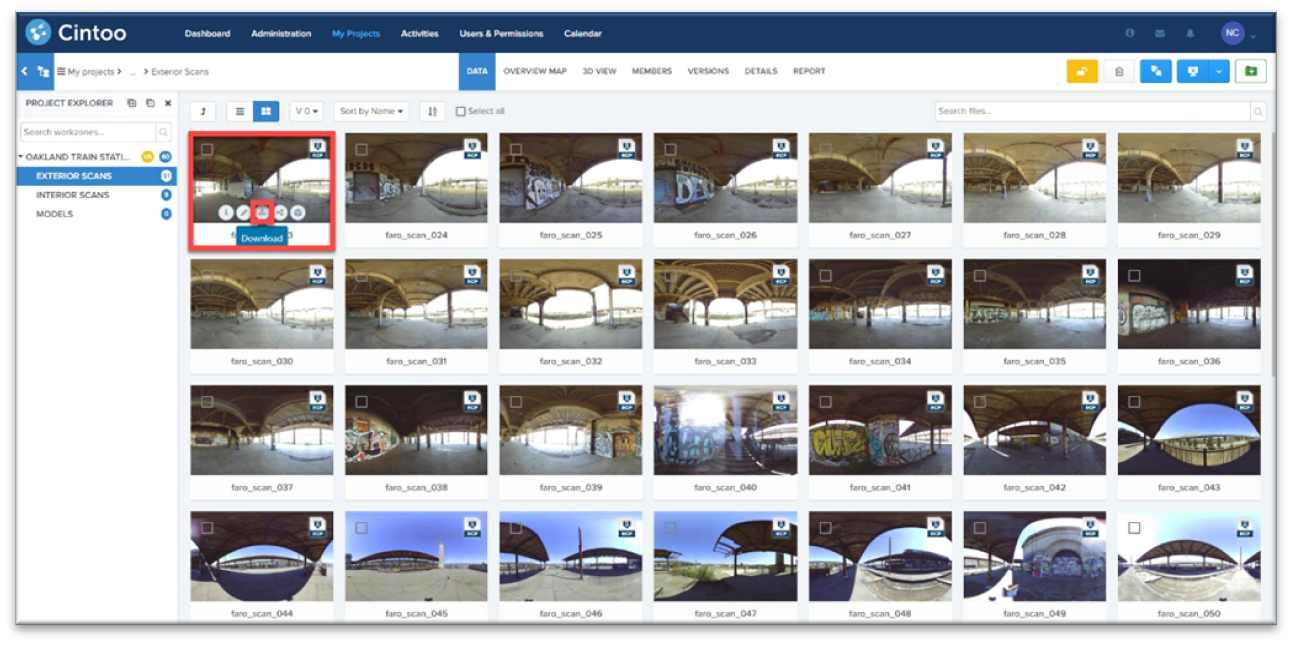

• To export an individual scan, navigate to the desired file and click the Download icon:






• To export multiple scans at a time, select the desired files and click the Export Scans button:




• To export an entire Work Zone containing scan data, navigate to the desired Work Zone and click the Download icon:




• To export multiple Work Zones at a time, select the desired Work Zones and click the Export Scans button:




• Clicking the Download icon or Export Scans button will launch Cintoo Connect:


• Scan data can be exported from the Data tab as a structured E57 or structured RCP file:

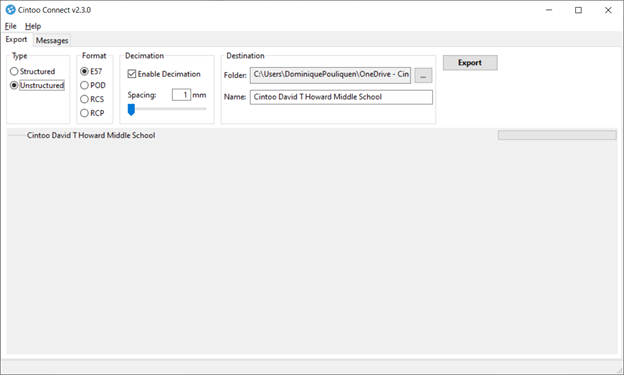

• Scan data can also be exported from the Data tab as an unstructured E57, RCP, RCS (Autodesk ReCap format), or POD (Bentley Point Tools) file:


• Click Export to initiate the mesh-to-point cloud conversion and export process:


2. Export scan data from the Crop List

• In the Overview Map or 3D View, click the Crop icon to open the Crop List:






• Navigate to the desired crop region, and click the Export icon to launch Cintoo Connect:


• Crop regions can only be exported as an unstructured E57, RCP, RCS (Autodesk ReCap format), or POD (Bentley Point Tools) file:


• Click Export to initiate the mesh-to-point cloud conversion and export process:
