Leica Cyclone-Export e57

This is a guide on how to export an e57 file from Leica Cyclone software (version 2021.1.0).

• In the Leica Cyclone – Navigator window, right-click on the registered ScanWorld to be exported, and select Export


Select E57 Scan Format as the file type, and click Save:

In the Export ScanWorld dialogue, make sure all options are checked, and click Export:

• If the import to Cintoo is missing 2D panoramic images, verify that the images being exported to e57 are cubemap images, not spherical images:
  • In Cyclone, click Edit -> Preferences*… -> *Scan tab:

  • Navigate to Export image to e57 as: and verify that Cubemap Image is selected:

  • Re-export the e57 file if needed.

EXAMPLE:

• Incorrect: 2D panoramic image missing in Cintoo:

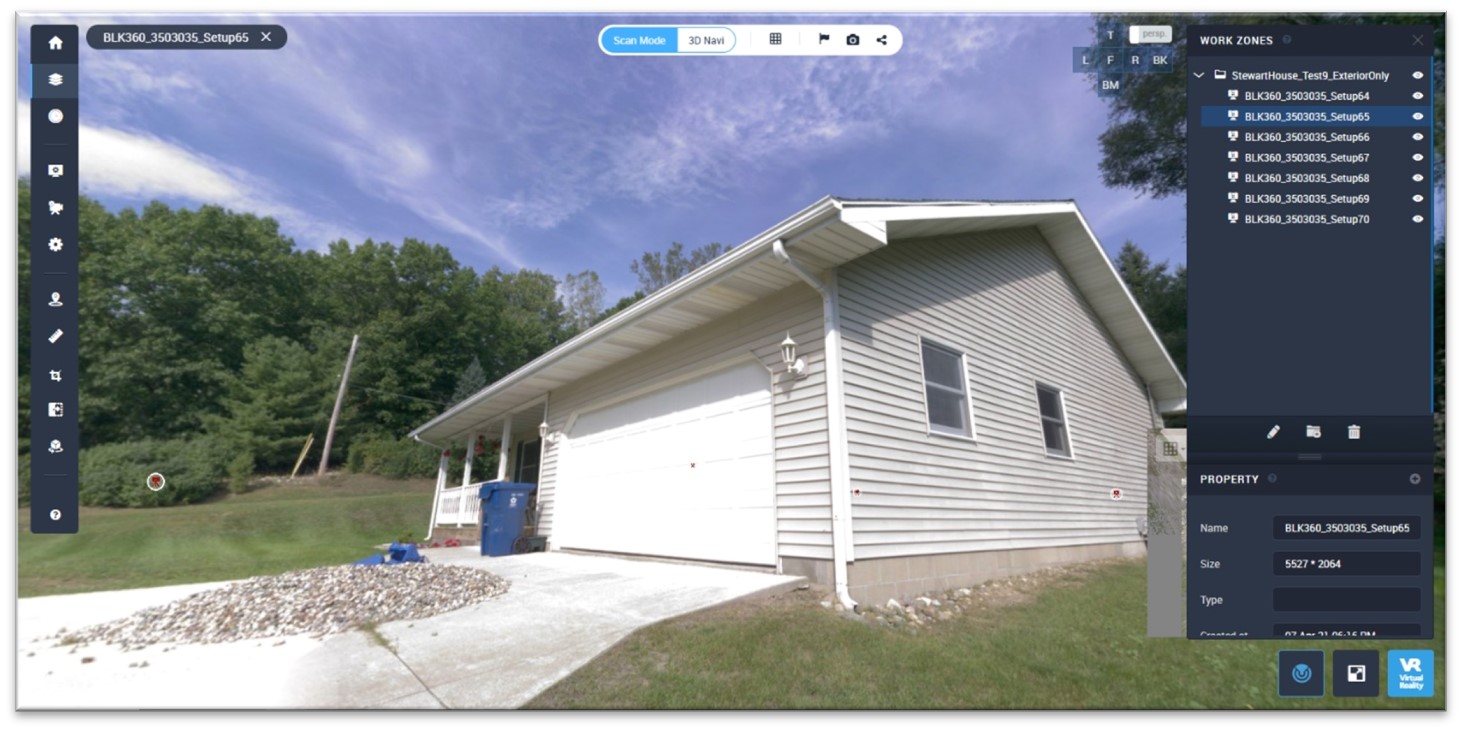

• Correct: 2D panoramic image showing in Cintoo:
